We work and material necessary for the installation of a complete system in running order and fit for purpose which including consultancy, design, supply, mechanical & electrical work, energy saving programme, turnkey project, commissionning completion, handing over, operational maintenance.

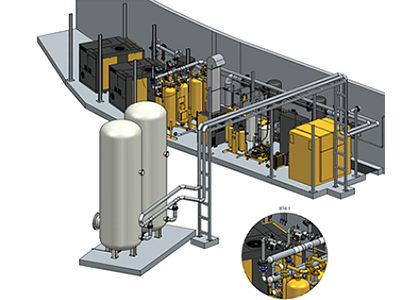

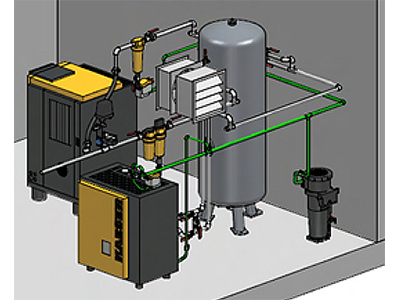

Smap3D Compressed air plant Design

Smap3D Plant Design is the world’s only fully integrated software in Solid Edge which ensures a continuous process chain throughout the entire plant design from P&ID to 3D piping and isometrics. We can design the total solution for compressed air station such as:

P&ID – 3D-Plan – Isometrics:
Fast and exact design of complex 3D piping systems with pipe classes and “intelligent components”
Integrated symbol library and plant engineering library

With Smap3D Plant Design, we are pleased to present you with a software solution containing exactly the features and components required by an engineer for a truly integrated process chain.

Design Stages

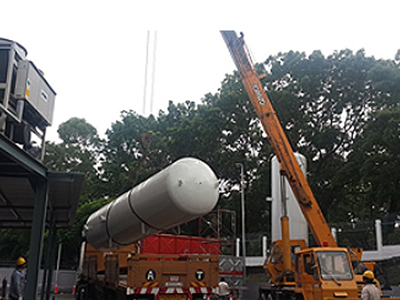

Installation Stages

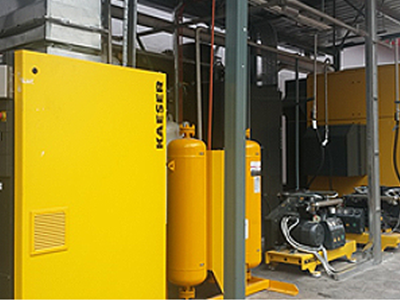

Project Hand Over
