V-Belt Drive up to 22 kW

Rotary Screw Air Compressors with V-Belt Drive up to 22 kW (30 hp)

KAESER screw compressors with V-belt drive provide outstanding efficiency and reliability. The KAESER drive is characterised by an automatic tensioning device* that ensures constant transmission efficiency. This, of course, reduces maintenance costs.

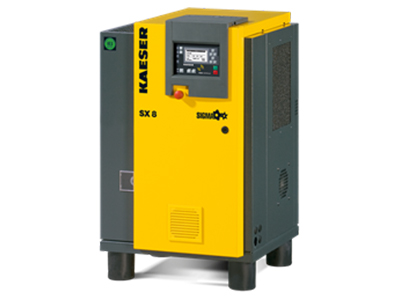

Rotary Screw Air Compressors SM Series: SX 3 / SX 4/ SX 6 / SX 8

Model	Working pressurebar	FAD *) Complete package at working pressurem³/min	Max. working pressurebar	Rated motor powerkW
SX 3	7.5	0.34	8	2.2
	10	0.26	11
SX 4	7.5	0.45	8	3.0
	10	0.36	11
	13	0.26	15
SX 6	7.5	0.60	8	4.0
	10	0.48	11
	13	0.37	15
SX 8	7.5	0.80	8	5.5
	10	0.67	11
	13	0.54	15

T – Version with integrated refrigeration dryer: SX 3 / SX 4/ SX 6 / SX 8

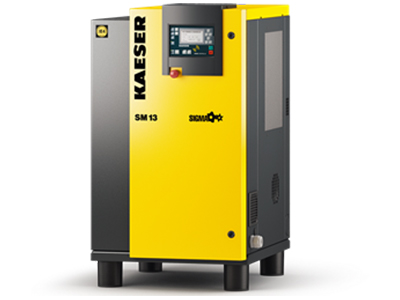

Rotary Screw Air Compressors SM Series: SM 9 / SM 12/ SM 15

Model	Working pressurebar	FAD *) Complete package at working pressurem³/min	Max. working pressurebar	Rated motor powerkW
SM 9	7.5	0.34	8	5.5
	10	0.26	11
	13	0.56	15
SM 12	7.5	1.20	8	7.5
	10	1.01	11
	13	0.77	15
SM 15	7.5	1.50	8	9.0
	10	1.26	11
	13	0.99	15

T – Version with integrated refrigeration dryer: SM 9 T / SM 12 T/ SM 15 TSFC – Version with variable speed drive: SM 12 SFC

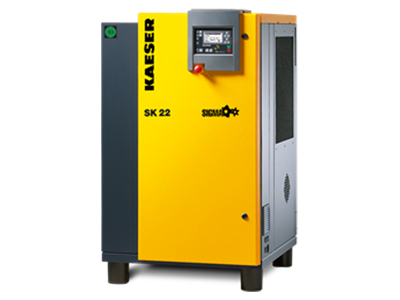

Rotary Screw Air Compressors SK Series: SK 22 / SK 25

Model	Working pressurebar	FAD *) Complete package at working pressurem³/min	Max. working pressurebar	Rated motor powerkW
SK 22	7.5	2.00	8	11
	10	1.68	11
	13	1.32	15
SK 25	7.5	2.50	8	15
	10	2.11	11
	13	1.72	15

T – Version with integrated refrigeration dryer: SK 22 T / SK 25 TSFC – Version with variable speed drive: SK 22 SFC / SK 25 SFC

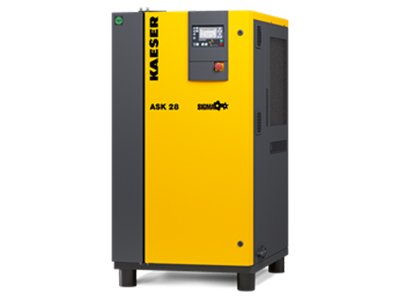

Rotary Screw Air Compressors ASK Series: ASK 28 / ASK 34/ ASK 40

Model	Working pressurebar	FAD *) Complete package at working pressurem³/min	Max. working pressurebar	Rated motor powerkW
ASK 28	7.5	2.86	8	15.0
	10	2.40	11
	13	1.98	15
ASK 34	7.5	3.51	8	18.5
	10	3.00	11
	13	2.50	15
ASK 40	7.5	4.06	8	22.0
	10	3.52	11
	13	2.94	15

T – Version with integrated refrigeration dryer: ASK 28 T/ ASK 34 T/ ASK 40T

SFC – Version with variable speed drive: ASK 34 SFC / ASK 40 SFC
